Sold Out Item ID: 2981

JDM Subaru Legacy 2005-2009 Outback Climate Control Din Dual Double Bezel Hazard

View All Images

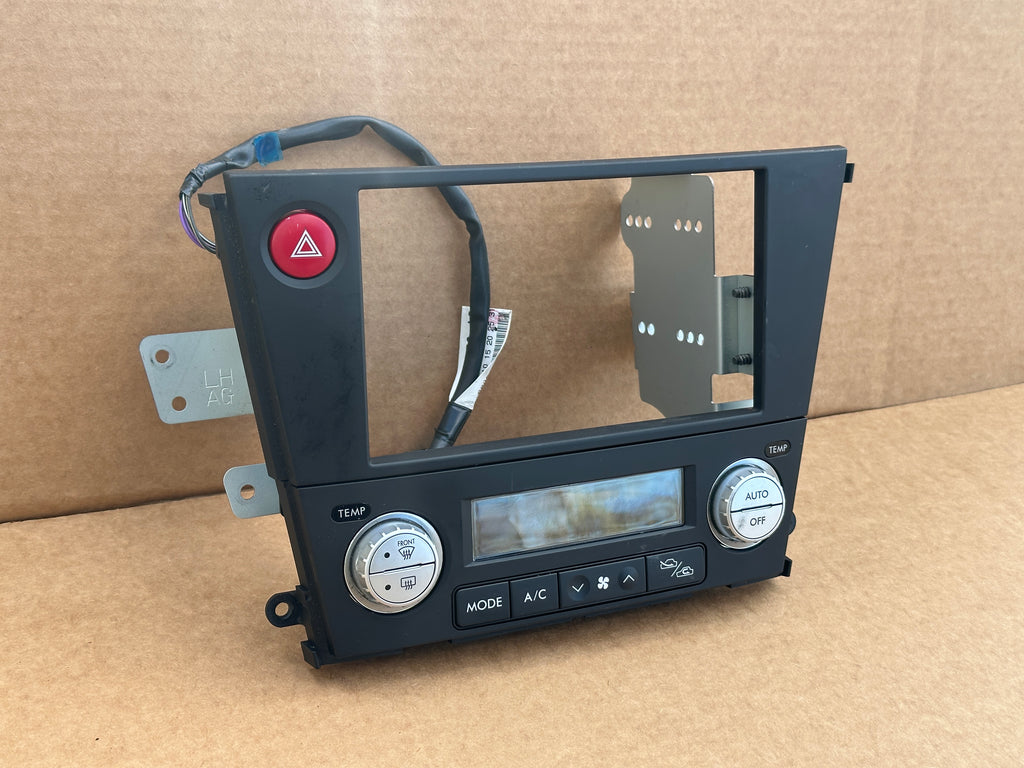

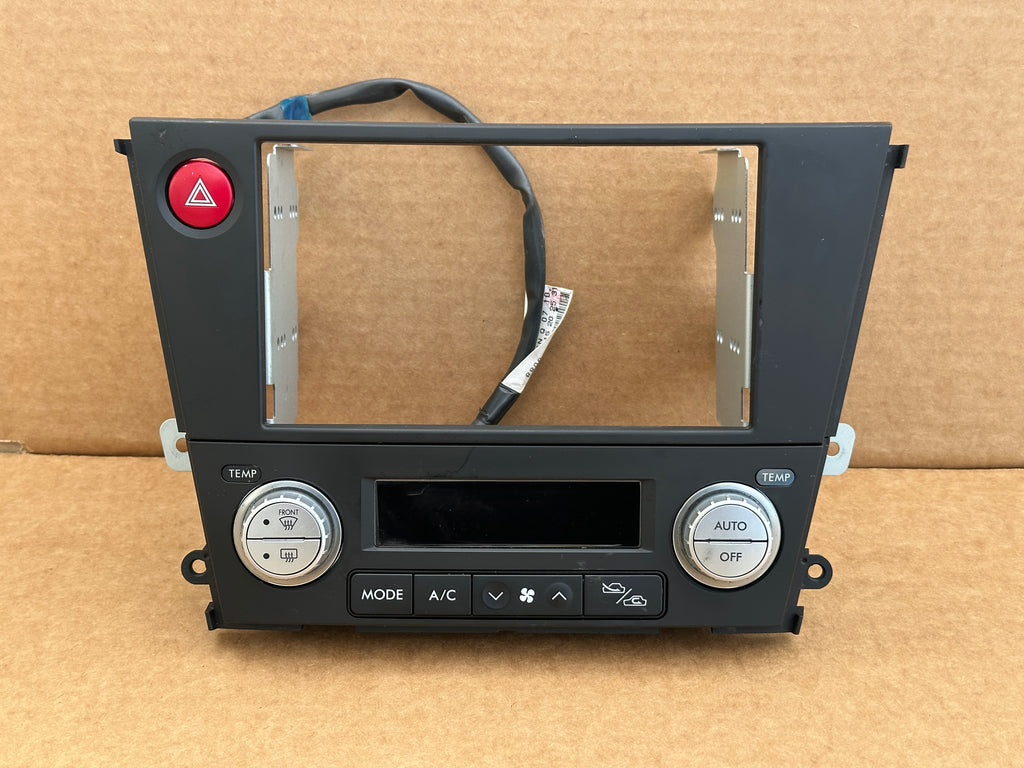

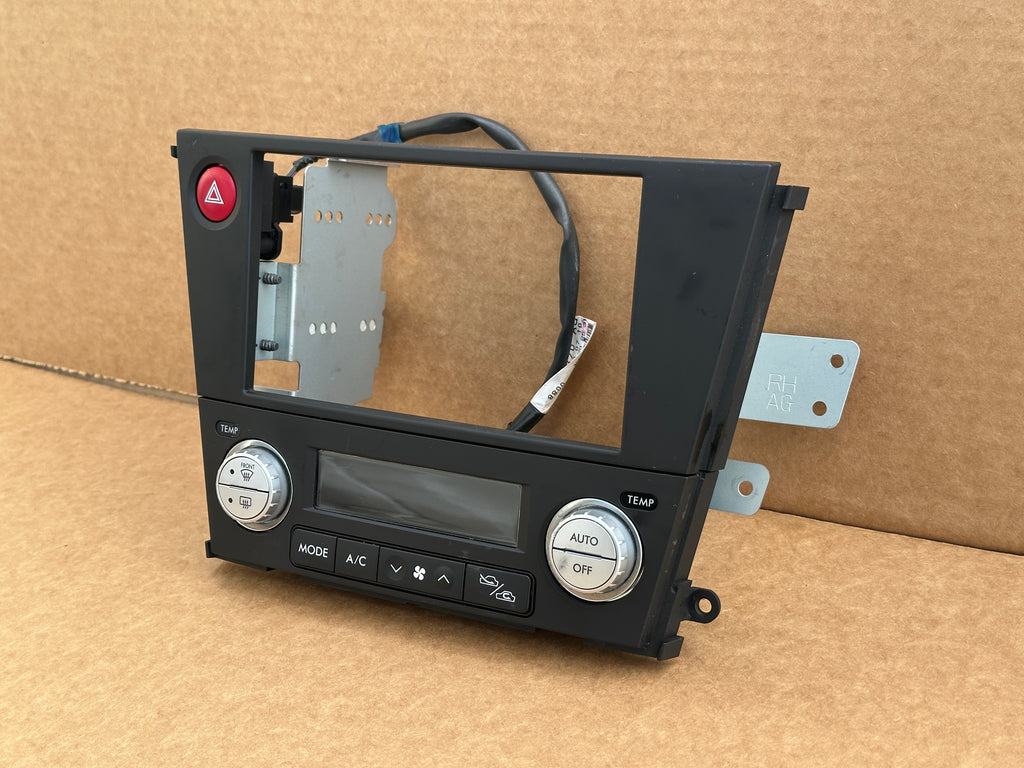

JDM Subaru Legacy 2005–2009 Outback Climate Control DIN Dual Double Bezel with Hazard Button

Upgrade your Subaru Legacy or Outback interior with this authentic JDM dual-DIN climate control bezel, complete with hazard switch and stylish silver finish. This bezel allows you to cleanly mount an aftermarket double-DIN head unit while integrating factory-style climate controls — a must-have for any clean JDM interior swap.

Key Features:

  • Genuine JDM Subaru Legacy/Outback center bezel (2005–2009)
  • Dual-DIN opening – perfect for aftermarket touchscreen stereos

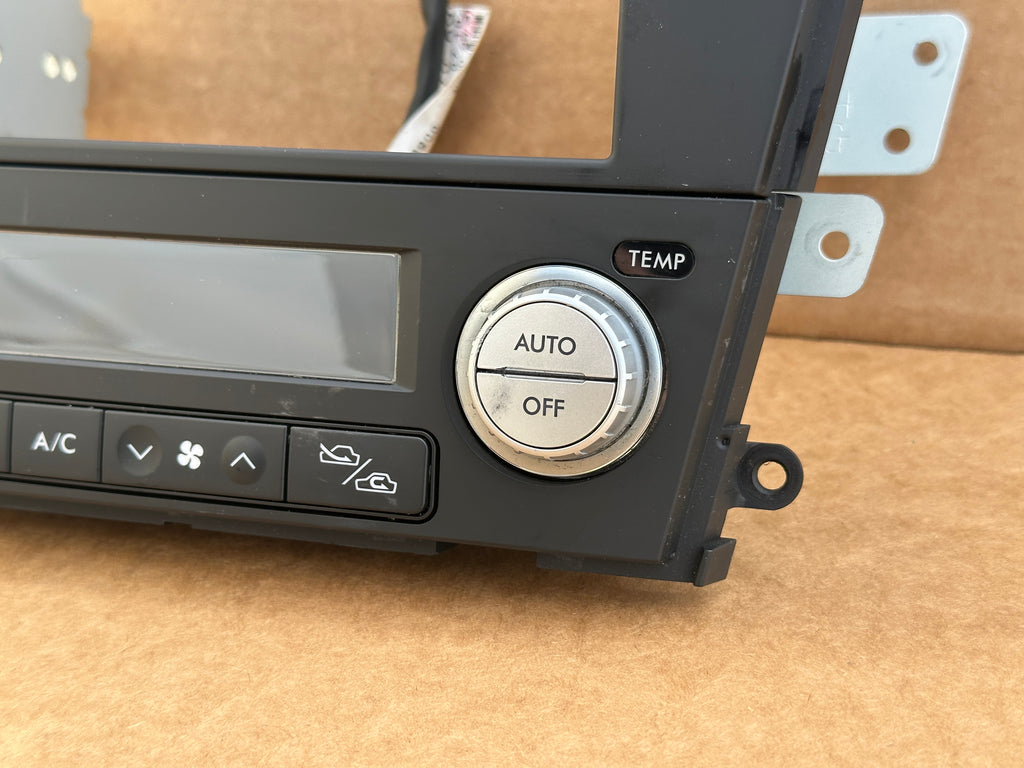

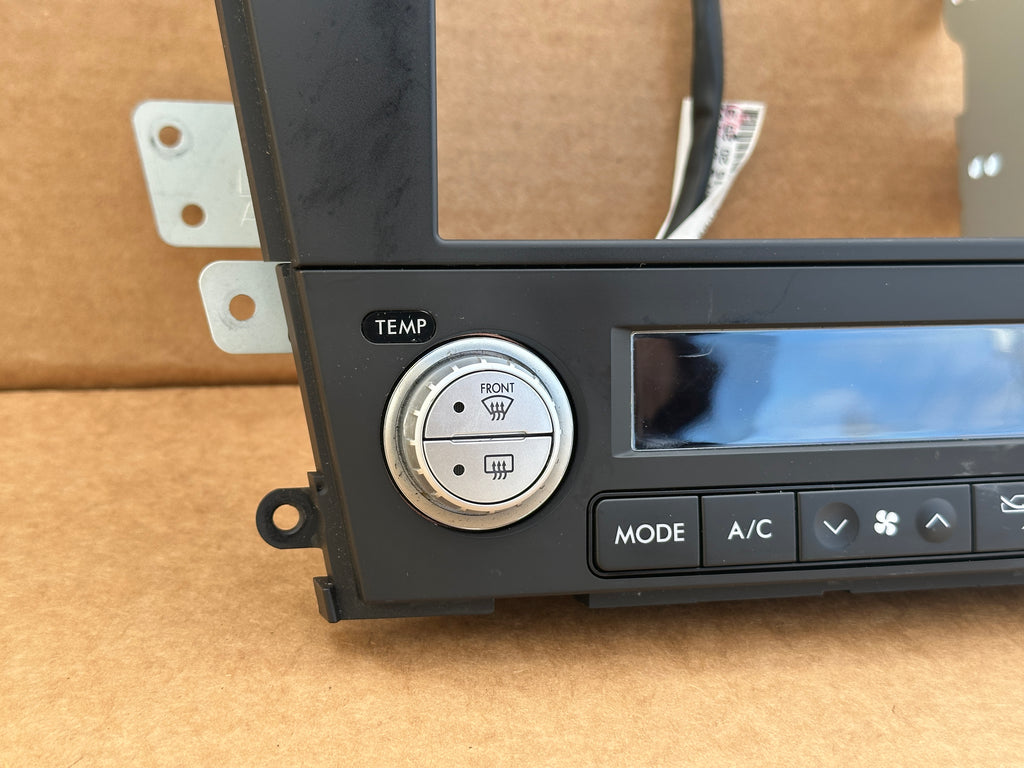

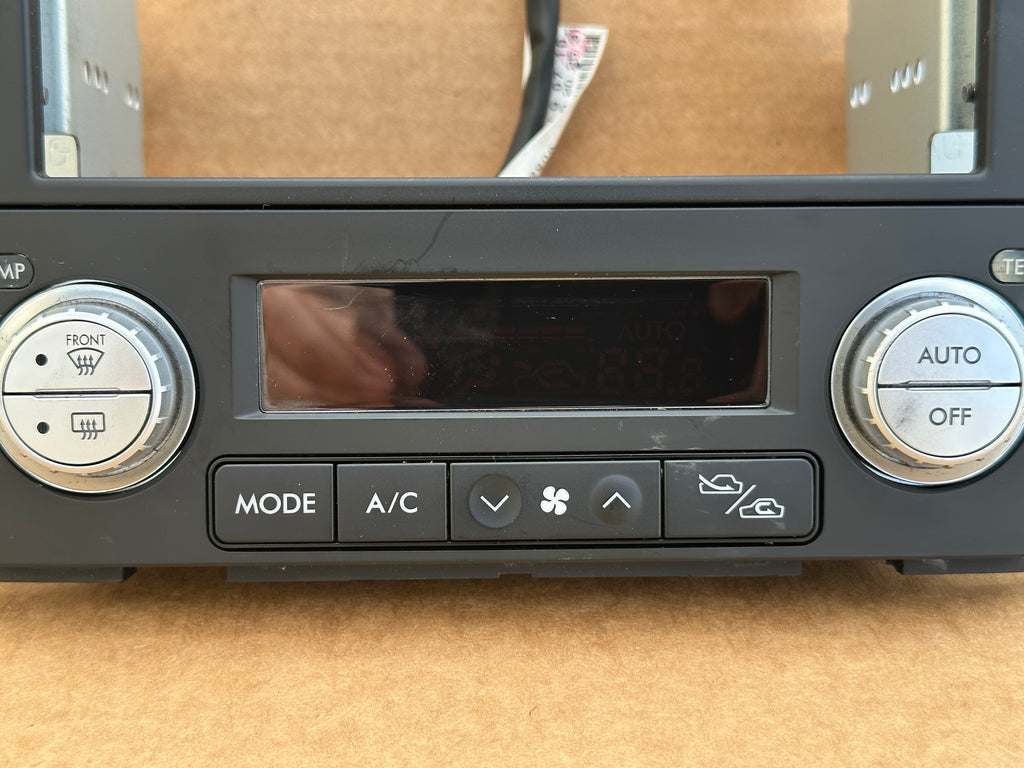

  • Integrated manual climate control and hazard button
  • Silver finish – matches OEM JDM interior trim
  • Direct fit for Right-Hand Drive JDM dashboards (modification required for LHD USDM cars)

⚠️ Compatibility Note (USDM Models):

This bezel and integrated manual climate control system were designed for Right-Hand Drive (RHD) JDM vehicles. Installing this in a Left-Hand Drive (LHD) USDM vehicle will require a custom wiring harness or climate control adapter to function properly. Direct plug-and-play is not supported. Professional installation is highly recommended unless you're experienced with automotive electronics and climate system conversions.

🧰 Required Parts & Tools

Parts:
  • JDM dual-DIN bezel with integrated manual climate control and hazard switch
  • i88 adapter harness (for climate control integration)
  • 14-pin stereo adapter (for aftermarket head unit)
  • Optional: i85 harness (for steering wheel controls, OEM navigation, or auxiliary input)
Tools:
  • Trim removal tools
  • Phillips screwdriver
  • Soldering iron or wire connectors
  • Electrical tape or heat shrink tubing
  • Wiring diagrams for both JDM and USDM climate control systems

🛠️ Installation Steps

  1. Disconnect the Battery: Always start by disconnecting the negative battery terminal to prevent electrical shorts or accidental airbag deployment.
  2. Remove OEM Bezel and Head Unit: Use trim removal tools to gently pry off the center bezel. Unscrew and unplug your current stereo and climate controls.
  3. Prepare the JDM Bezel: Carefully remove the climate control unit if needed and verify functionality before continuing.
  4. Wiring the Climate Controls: The JDM manual unit uses different wiring than the USDM digital system. Use a pinout diagram and a custom wiring harness or adapter like the i88 harness to connect corresponding functions (fan speed, temperature, etc.).

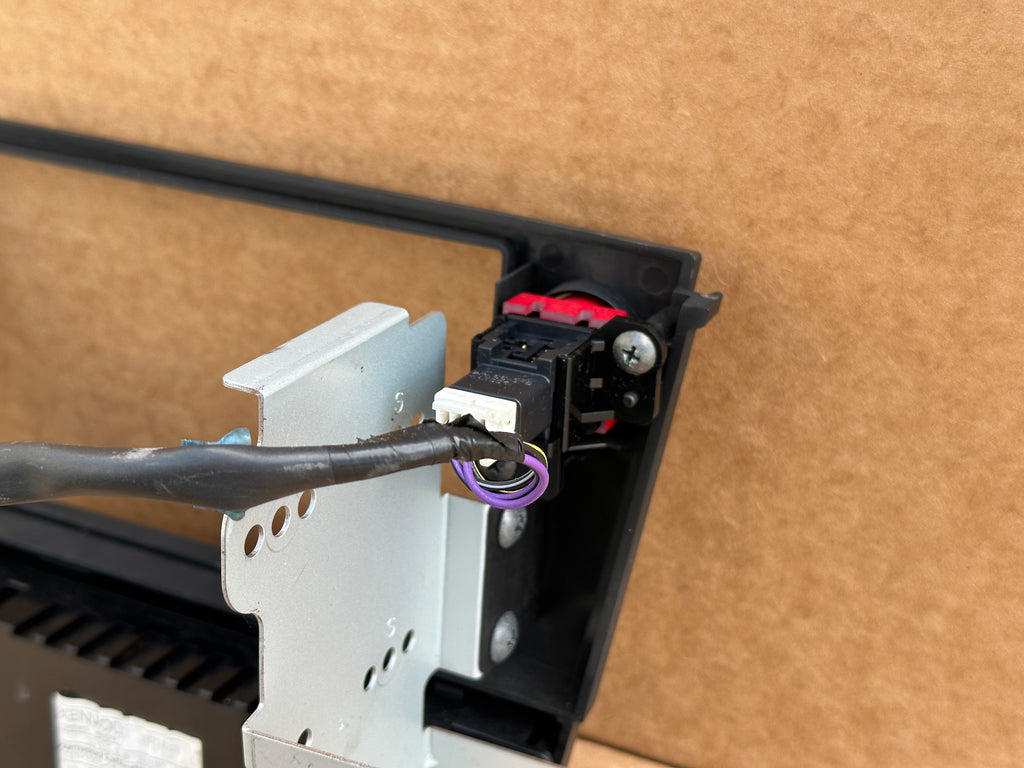

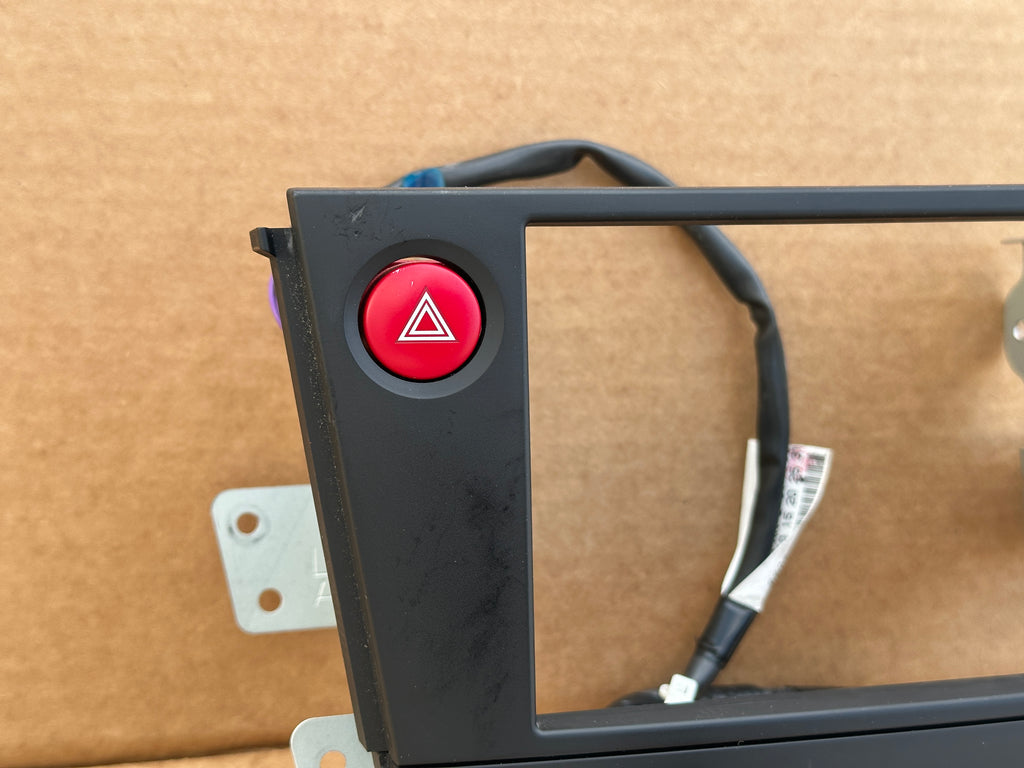

  5. Hazard Switch Wiring: The hazard button connector differs. You will likely need to re-pin or adapt the plug.
  6. Install the New Stereo (Optional): Mount your double-DIN head unit using a compatible kit. Connect using a Subaru-to-ISO or aftermarket harness.
  7. Test Everything Before Final Assembly: Reconnect the battery. Test climate controls, hazard switch, and stereo. Ensure blower, A/C, and heat respond correctly.
  8. Secure and Reassemble: Once confirmed working, reattach everything and secure the bezel. Foam padding may be used to fill any fitment gaps.

🔗 Additional Resources

Condition:

  • Used JDM import
  • Fully functional unit
  • May show light wear or surface marks from prior use

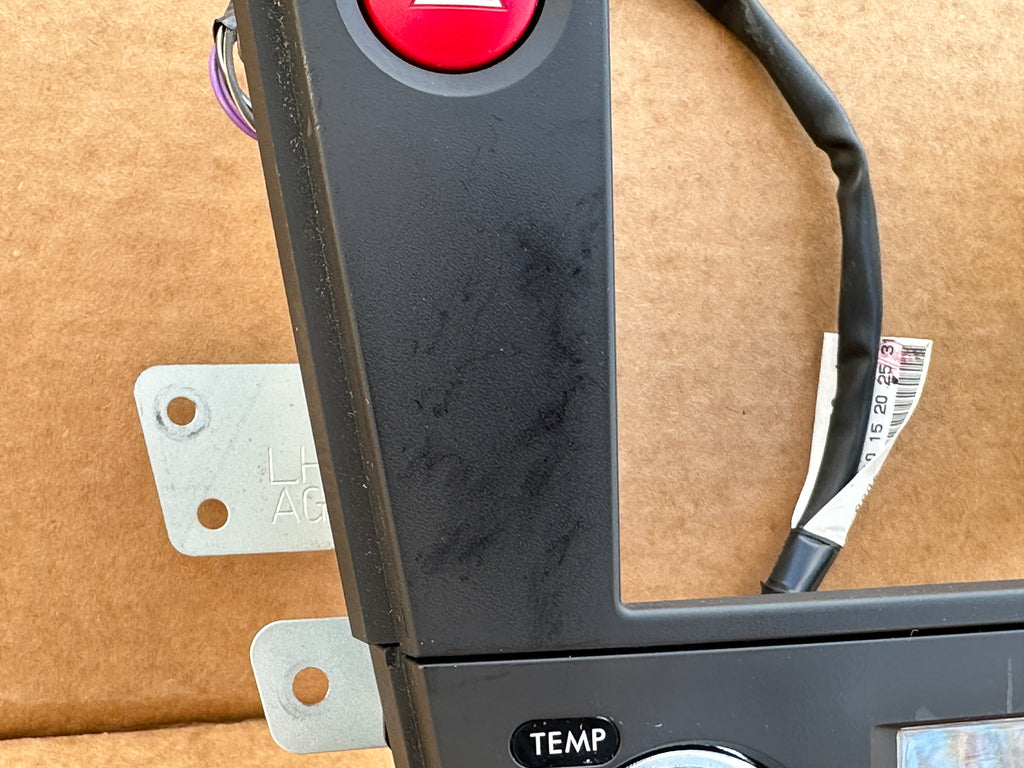

NOTE: This is a used JDM product and may contain cosmetic defects. Please view item pictures carefully.
